here is our Dynaco ST70 page
click here to go to amps page (ST70-ST120-M125)

Our famous VTA70 driver PCB upgrade for your amp!

Shipping will be billed after purchase unless the item specifically states free shipping



we've been selling this modification/upgrade for the ST70 since 1989 - 34 years now!!
we now offer 2 choices

our classic version using 12AU7 tubes
our NEW octal version using 6SN7 tubes
how to choose if you're not sure which one to buy . . . ??

* If you have an older stock version ST70 choose the "classic" version.
* The new octal version can be used on ST70s that have an upgraded power transformer
    (to handle the extra current needed by the larger octal tubes)

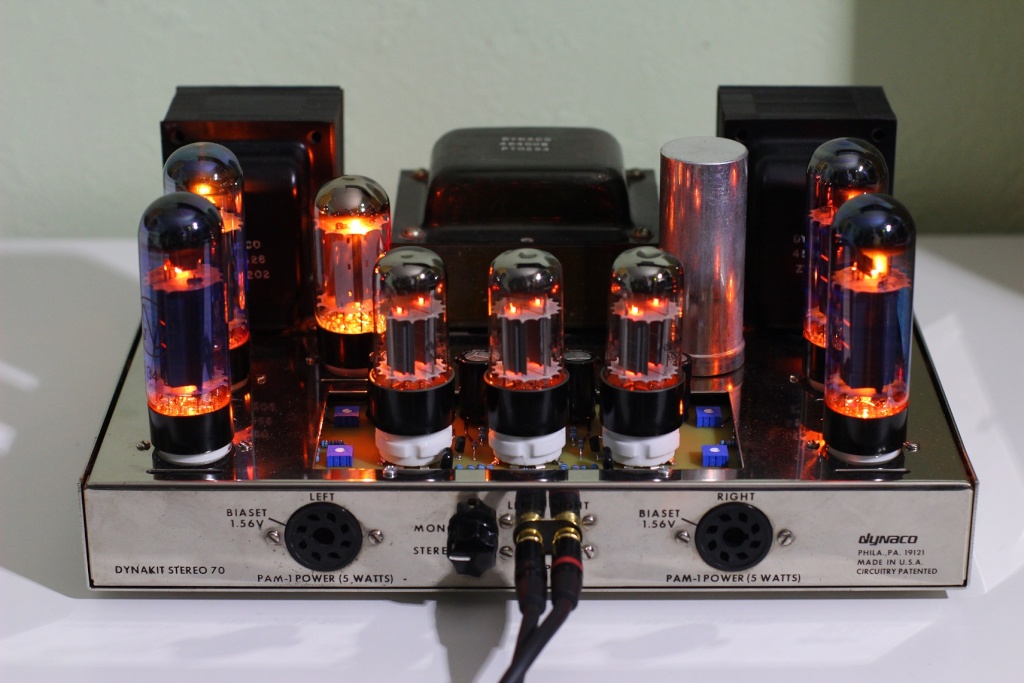

(photo courtesy of customer Tevian)








see our customer comments on this mod/upgrade at the bottom of this page!!

non-USA buyers, please contact me by email first before placing your order!!

shipping to non-USA buyers will cost an additional $10 to $50+ for shipping and customs paperwork!!

email "tubes4hifi" for info    info@tubes4hifi.com



"classic" version bare PCB with parts list, schematic, and manual is $39.99 FREE shipping in USA

our "classic version" VTA70 modification is newly upgraded with a CCS (constant-current-source)
in the "long-tailed" phase inverter for perfect AC phase balance,
and is still the premium ST70 modification available on the market.
It has an upgraded bias supply and 4 individual bias adjustments, one for each output tube.

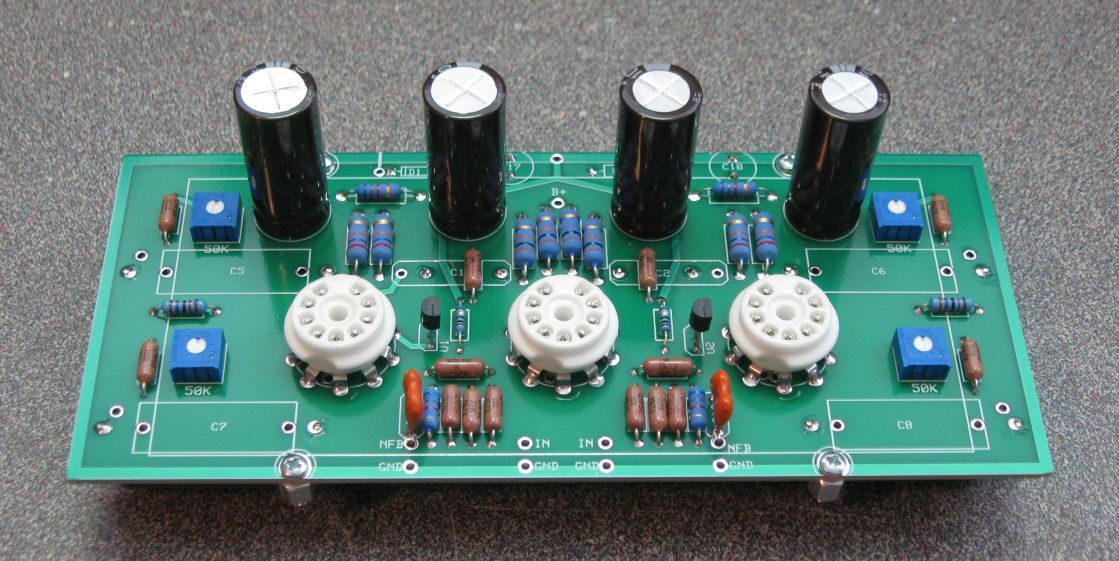

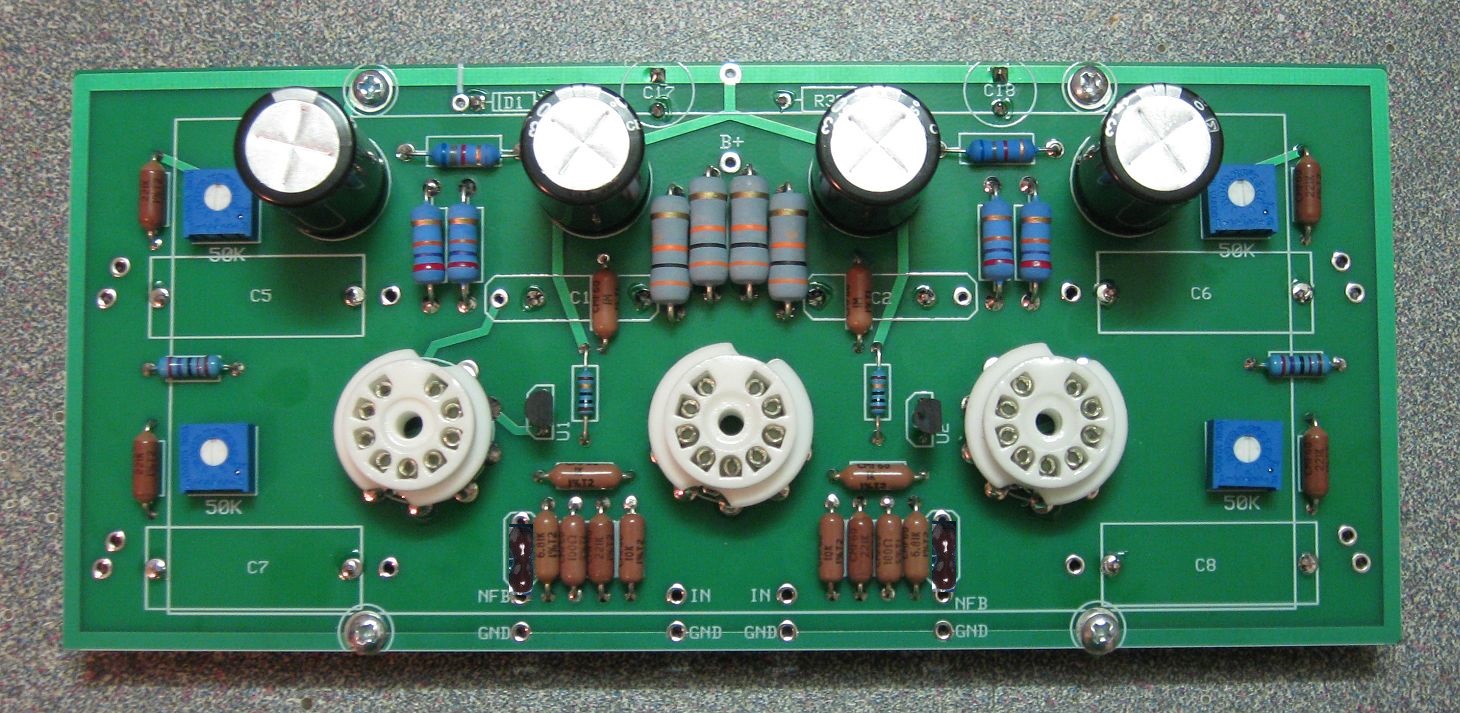

top view of PCB

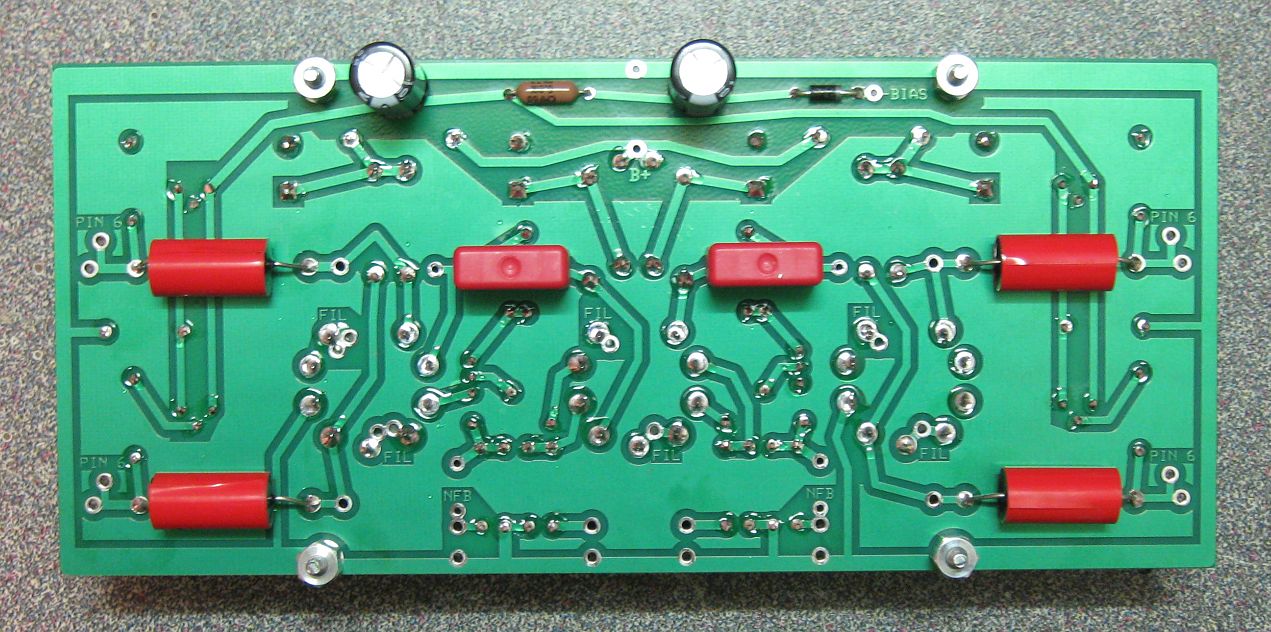

bottom view of PCB
"classic" version PCB and parts kit is $89.99
(NOT including 3 driver tubes) FREE shipping in USA

"classic" version assembled and ready to install for $139.99
(NOT including 3 driver tubes) FREE shipping in USA
Plugs right into your ST70 amp.


Octal driver for ST70 or ST120

This board uses three 6SN7 tubes rather than the smaller 12AU7 type tubes,
with a CCS (constant-current-source) for perfect phase-splitter balance.
Same exact size, parts layout, and hookup connections as the boards above.


lower photo shows bottom side with optional EVO oil caps

better set of three tubes for new octal driver
$150 for set of three


NOS Sylvania 6SN7GTB for new octal driver

SOLD OUT
VTA70 octal driver, bare PCB only $44.99
free shipping in USA

VTA70 octal driver, PCB and parts kit (no tubes) $104.99
free shipping in USA

VTA70 octal driver, assembled, tested, ready to install (no tubes) $154.99
free shipping in USA


here's a comment from a recent "VTA70 octal" buyer . . . .


"Hi Roy,
Just wanted to let you know that I got the amp up and running, and it sounds great!
I'm very happy with the 6SN7 board.  I did some quick measurements on the completed amp
and they were better than I expected. Here's what I got:
Max power before clipping 40W
Response @ 40W +/- 1db  20Hz-30kHz
THD @ 20W  .12% @ 1kHz  .15% @ 20kHz  .45% @ 20Hz
As far as sound Vocals are outstanding. The overall sound has a nice balance of warmth without loosing detail.
Very good soundstage in both width and depth.
I congratulate you on a fine upgrade to the old Dynaco work horse and I thank you for your quick responses
to my Emails during the assembly process.    Bill K"



NOTE: the following items do NOT including shipping unless ordered with a kit above,
if ordering separately please add $5 to your order for shipping

add $5 for shipping fees
add $10 for shipping fees
add $20 for shipping fees
add $30 for shipping fees

Another option is a capacitance upgrade from our standard 188uF on board,
to 400uF on board, for an additional $15 !!
(upgrade price is a substitute for standard caps)

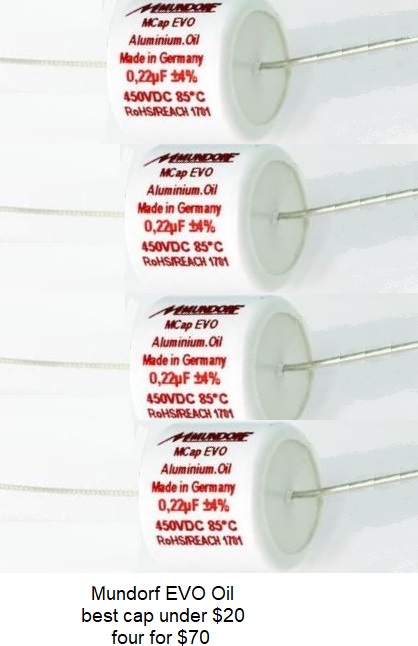

four Mundorf EVO oil caps,
high-end upgrade for the four outputs


four Mundorf MKP caps,
low cost upgrade for the four outputs



add 3 JJ 12AU7 tubes for $75,
these are good tubes for the "classic version"!

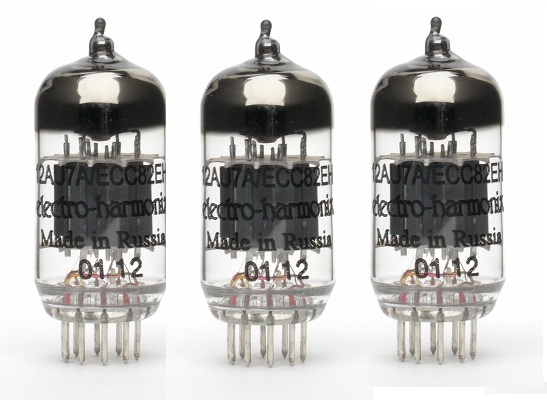

add 3 EH 12AU7 tubes for $90,
these are better tubes for the "classic version"!

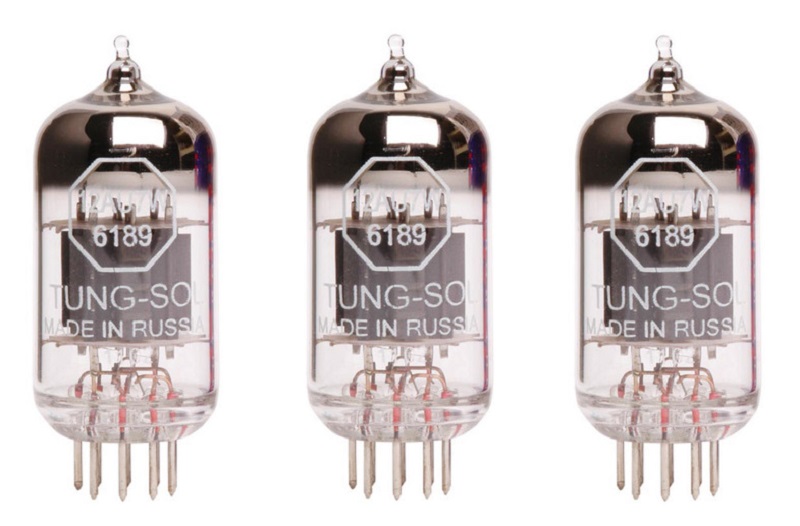

add 3 Tung-Sol 6189/12AU7 tubes $90
these are excellent tubes for the "classic version"!

add 3 mil-spec NOS 6189 tubes for $96,
these are excellent tubes for the "classic version"!
IN STOCK, GET THEM WHILE YOU CAN !

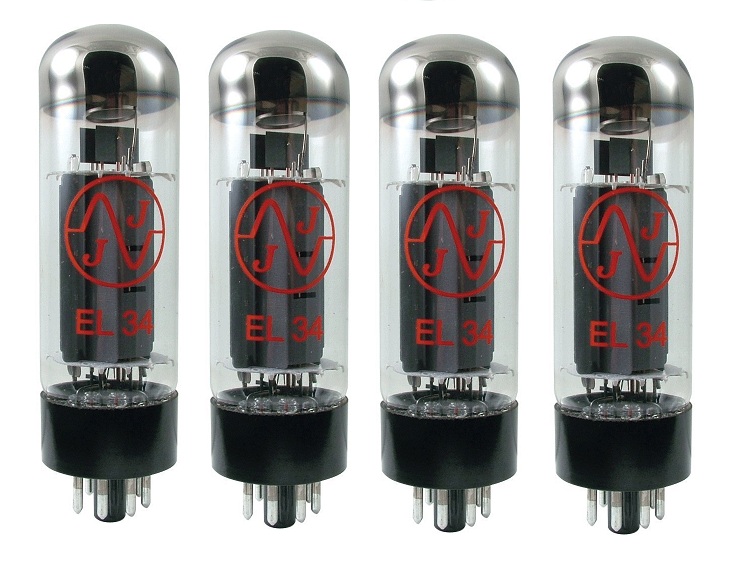

add 4 JJ EL34 output tubes for $125
good quality at a low price

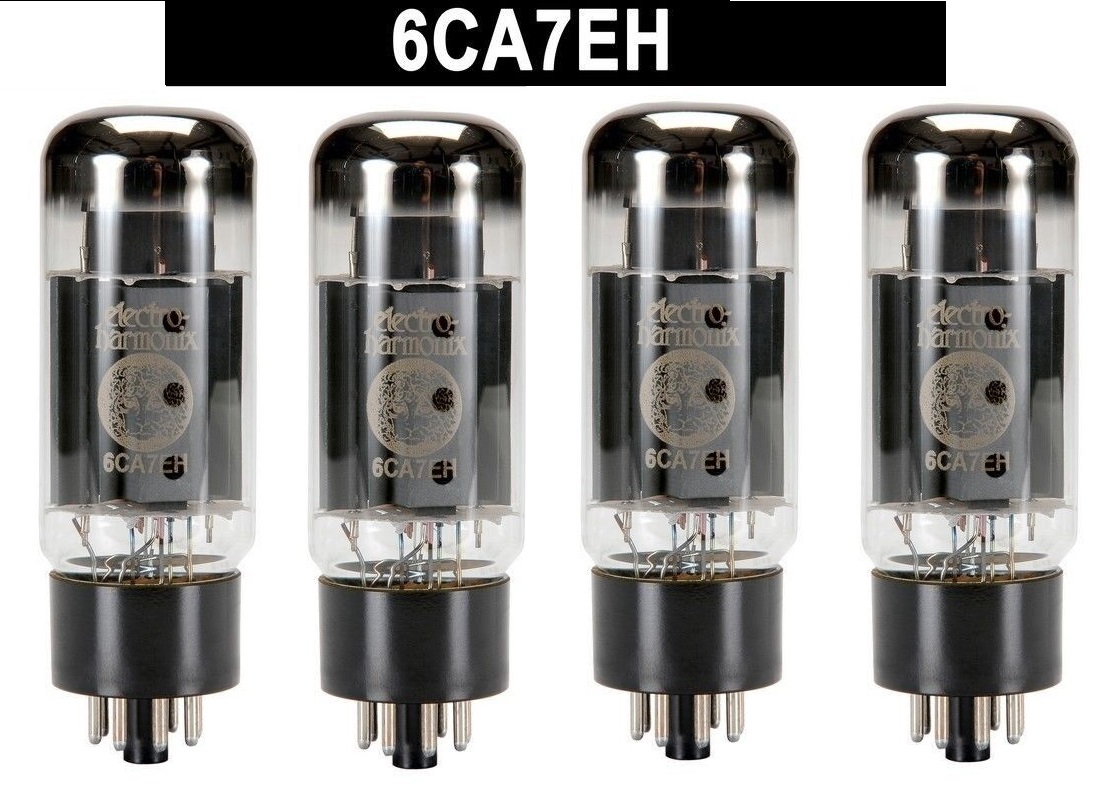

add 4 EH 6CA7 for $200
high quality tube at a great price

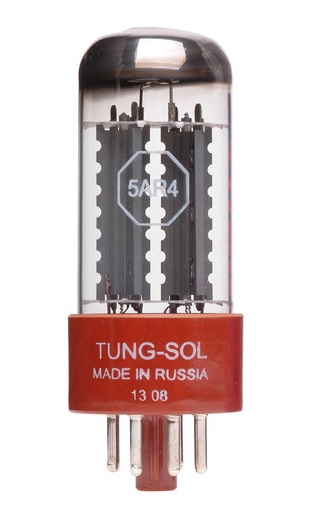

add one Tung-Sol 5AR4 rectifier tube $60
high quality tube at a great price
IN STOCK !

add one NOS 5U4GB rectifier tube $50
high quality tube at a great price
IN STOCK !

new input jacks $15 pair GOLD PLATED

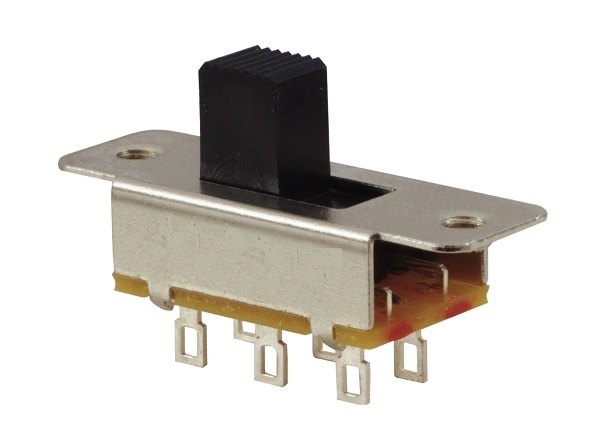

original type Dynaco switch (power or mono-stereo) $4 each (only with orders over $20 total)

Original type UPGRADED quad cap for ST70 (80+40+30+20uF@525v) $50

NEW fuse kit $15
protect your output tubes and rectifier tube

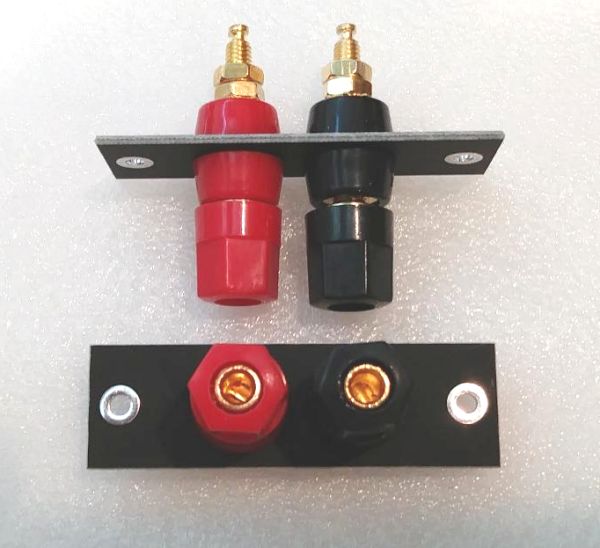

dual speaker posts $16 pair - these are standard 3/4" spacing
and must be used with single plugs or terminals, fits ST70 and MK3 only

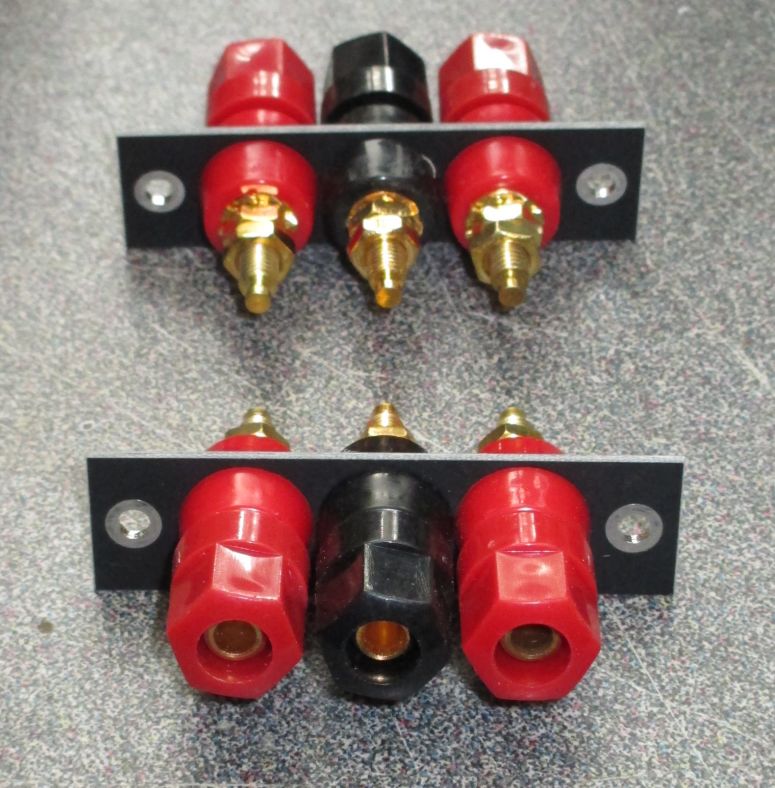

new TRIPLE speaker posts $20pair - note these do NOT use standard 3/4" spacing
and must be used with single plugs or terminals, fits ST70 and MK3 only

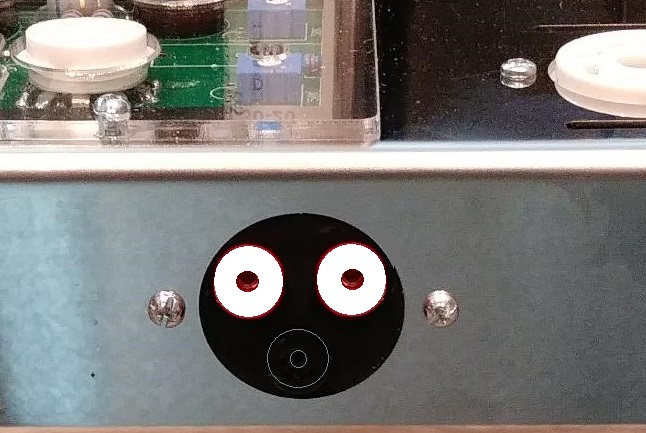

bias test points (replace octal socket) $20 pair

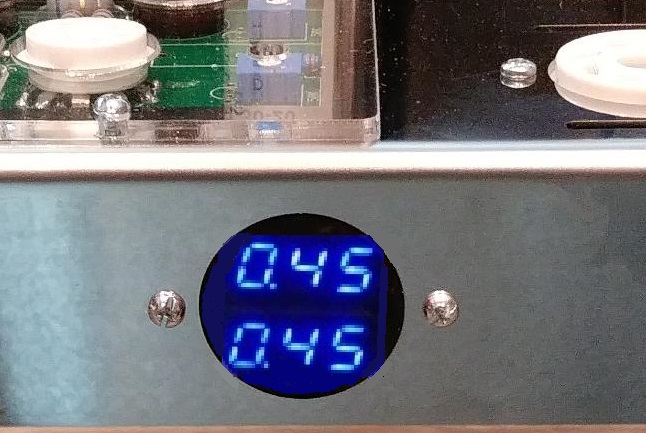

Bias display (replace octal socket) ST70 or ST120
For use with VTA driver board only

$40 for two pairs KIT

$70 for two pairs assembled/tested



dual rectifier mod, highly recommended for ST120 amp,
to replace single rectifier and quad cap see info here

Triode/pentode switching kit
This kit may be added to any amp driven with the VTA mod PCB to allow your amp to operate
in either the normal pentode ultralinear mode, or switch to sweet sounding triode mode.
Simply remove the old bias pots and install the switches in the empty 3/8" holes.
Note - Kit cannot be installed in a stock amp which still uses the old original bias controls.
Comes with all parts and instructions. $30 with FREE First Class mail delivery in the USA.


Digital Voltmeter


check your bias !
one for $14

two for $24




This is a "time delay relay" board" for tube amps and preamps.
The time delay allows the tube filament heaters to come up before any high voltage is applied.
The time delay is nominally about 17 seconds but may be adjusted for more or less delay
at the discretion of the user. There are complete instructions for the assembly and installation
of the board. In a stock ST-70 the board replaces lugs 5, 6 and 7 of the 7 lug terminal strip.
In a VTA ST-70/ST-120 tube amp kit, the VTA-TDB replaces the 3 lug terminal strip.
The VTA-TDR may also be easily retrofitted to any VTA ST-70/ST-120 tube amp kit.

The board is 1 7/8 inches wide by 2 1/2 inches long. It takes about 1/2 hour to assemble and
is powered by a 6.3 volt AC line taken off V2. When the board is powered up a RED LED lights up
to show that the board has power. About 17 seconds after power is applied, a GREEN LED comes on,
and the relay kicks in to apply high voltage to your amp.
If you are in an area that has quick ON/OFF/ON power interruptions the board will automatically reset itself.

This board is to be used ONLY for solid state rectifiers. If used with a TUBE rectifier,
the TDR can cause problems with the normal slow warm up of the tube rectifier and may damage a tube rectifier.
If you intend to use a TUBE rectifier ONLY with your amp, you do not need the TDR.
If you do use a tube rectifier with the TDR, you should BYPASS the TDR.
Instructions are included with the TDR on how to bypass the TDR.

This board is a relay switch that will not apply the high voltage power to the amplifier until after the
tube filaments are warmed up, the board has a 17 second delay that can be changed.

This is a very heavy duty industrial relay used for 280vac 3 phase and rated at 8 amps.
This is a great addition to your tube amp. It can run on 6vAC or 12vDC.

TDR KIT $35
TDR assembled $55

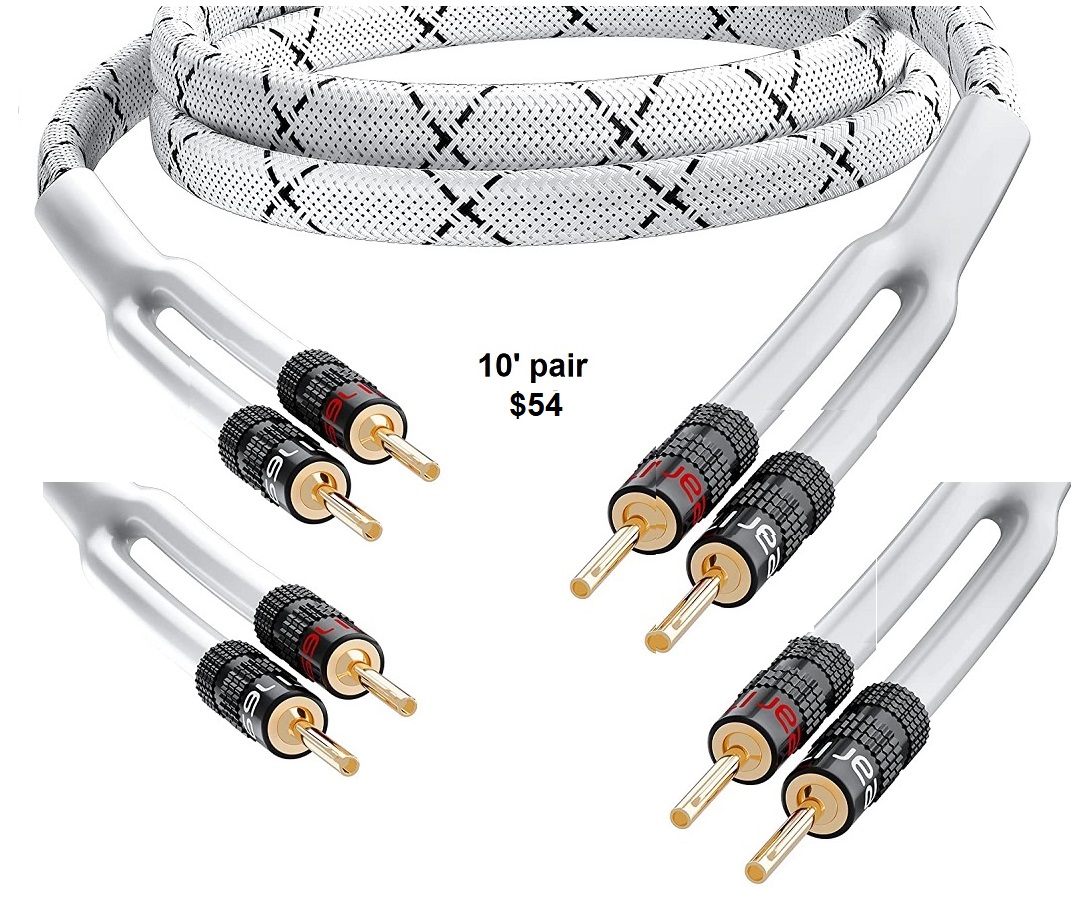

premium speaker cables 10'
$55 PAIR + $10 shipping

14g dual cable with gold-plated bananas

compare to Audioquest type 4 at $280 !!

premium speaker cables 15'
$60 PAIR + $10 shipping

14g dual cable with gold-plated bananas

compare to Audioquest type 4 at $350 !!

premium power cord 5 feet $55
(compare at $100+)

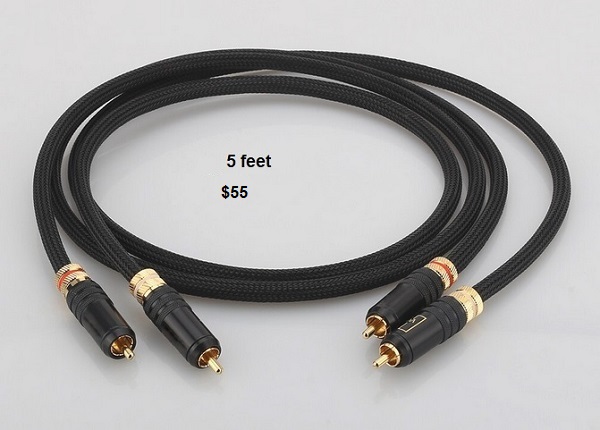

RCA-RCA stereo pair 5 foot interconnect $55
(compare at $80+)




click here to go to complete amplifier kits click here to go to our MK3 page click here to go to our downloadable Dynaco manuals page

visit our new "Dynaco Tube Audio Forum"

Written Articles


ST70 modifications comparison test - Glass Audio magazine article

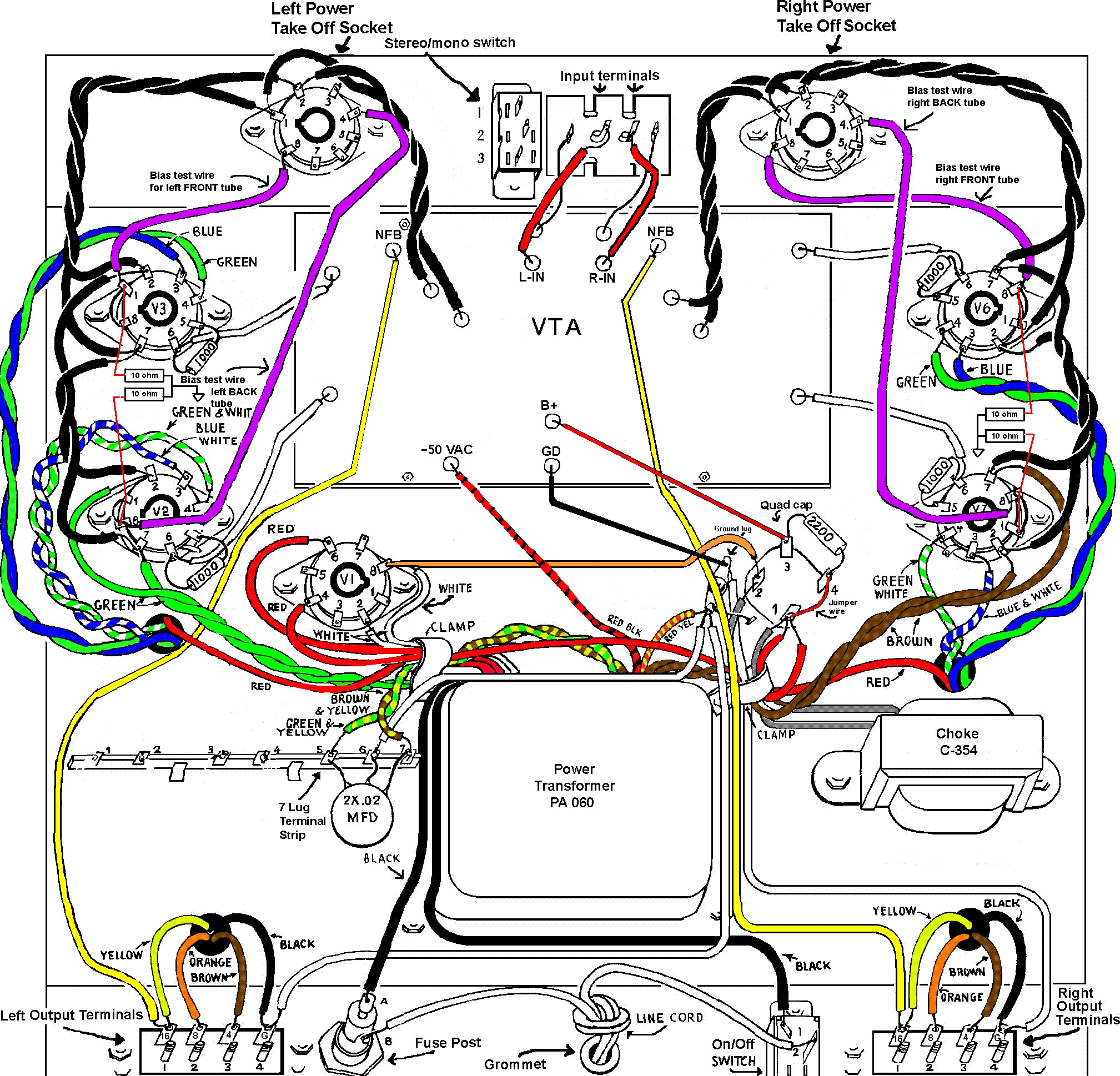

here's a link to a wiring diagram for our VTA amp

here's a photo of the internal wiring on a VTA70 amp, with the Triode/Pentode switches . . .



see amps page to order an amp like this !!



contact us for any parts you may need for your Dynaco ST70
email "tubes4hifi" for info


 brand NEW ST70 amplifiers, in KIT or ready to go!






some additional info on our VTA70 PCB . . .


Our driver circuit is a modern all triode driver design, for totally neutral uncolored sound.
One half of the first tube is used for each channel as a voltage amplifier.
One each of the other tubes is used per channel as a combined phase splitter/driver
in a long-tailed pair configuration.  13 db total loop feedback is used.
Parts quality is top notch, with mil-spec tubes, metal film resistors, and propylene caps.
There is an individual bias pot for each output tube, as well as a signal balance pot for the
phase splitters.
The bias is set for 40 ma, about 20% less than stock to reduce heat and conserve tube life.
Open loop response of this design is incredible.  It has flat frequency response from
7 Hz to 70 KHz, with good square waves from 7 Hz to 30 KHz.  Open loop gain is 40.
The PCB is 8.0" x 3.3".  Max power output is 40 wpc.

This board compares very favorably with the best of the competition, and is a better quality PCB for less money.
For example, the Curcio board with comparable options (DC & AC balance, propylene caps) is about $40 more, and it is single sided.
Ours is double-sided with plated thru holes. Now available in our improved design using 12AU7 or 12BH7 tubes
